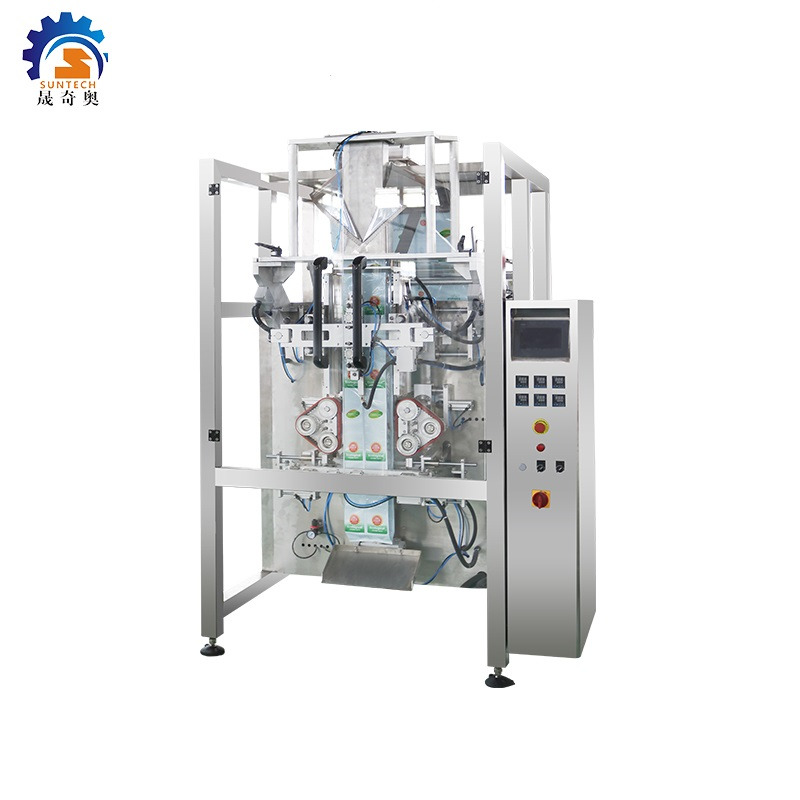

Vertical Packing Machine

520/720 vertical machine four side ironing and five side ironing

• The 4 sides seal quad design more 3-dimensional, bag shape more beautiful & high-end.
• Imported PLC full computer control system, man-machine interface, high-precision large color touch screen, easy operate.
• Imported servo double-belt film pulling system accurates positioning, stable & reliable film transport, no deviation in bag size.
• Self-diagnostic emergency stop function, intelligent to greatly reduces losses.
• This series integrates bagging, filling, sealing, printing, punching and automatic counting, with automatic correction function..
• Temperature independent PID control, sealing temperature deviation ±1℃.

Packaging & Delivery

Packaging Details
1) Dedust & cleaning.
2) Lubricate drive parts.
3) Divide machine into modules.
4) Wrap modules with plastic film.
5) Packing modules into wooden case.
If any special requirements, we will pack it as requested.
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 15 20 To be negotiated

fully speed 1kg  2kg 3kg 4kg 5kg vacuum sealer machine packaging automatic

Quad Bag Packing Machine

What are the Applications of Quad Bag Packing Machine?


01. Product application:

SUNCHON fully automatic multi head weigher packaging machine, It is suitable to use in packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball,  currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Quad Bag Packing Machine

What description of our Quad Bag Packing Machine?

Product Description

Quad Bag Packing Machine

02. Product feature: Quad Bag Packing Machine

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance;

6. Weighing accuracy 0.2 to 1.0 gram.


03. Machine Specification: Quad Bag Packing Machine

(We have several models. We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag.)

Modal SUN-320W SUN420W SUN520W SUN720W
Measuring range 150-800ml 150-1500ml 150-2000ml 150-4000ml
Packaging speed 5-70bags/min 5-60bags/min 10-60bags/min 10-60bags/min
Bag width 50-150mm 60-200ml 80-250mm 100-350mm
Bag length 80-240mm 80-300mm 80-350mm 100-450mm
Film roll width Max.320mm Max.420mm Max.520mm Max.720mm
Film thickness 0.03-0.09mm
Film material OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)





Machine weight 350kg 450kg 550kg 700kg


What is Quad Bag Packing Machine?

The quad bag packing machine is engineered to pack products with quad seal bags. The quad seal bags also known as block bottom bags or flat bottom bags, have four panels on the sides that give them a boxy shape when filled. These bags are popular in the food and snack industry, as they provide a stable and attractive packaging solution for a variety of products.

What are the Features of the Quad Bag Packing Machine?

The quad bag packing machine is a packaging solution that not only offers precision and efficiency but also enhances the visual appeal of your products.

The quad bag packing machine offers a 4-sided seal quad design that brings a three-dimensional, captivating allure to your packaging. The products will not only stay secure but also exude a high-end and visually appealing charm that sets them apart on the shelf.

Equipped with an imported PLC full computer control system, the quad bag packing machine features a user-friendly man-machine interface and a high-precision, large color touch screen.

The quad bag packing machine's imported servo double-belt film pulling system ensures impeccable accuracy in positioning.

The quad bag packing machine has all-in-one efficiency. With the capability to integrate bagging, filling, sealing, printing, punching, and automatic counting, this series offers a seamless, streamlined process. It also boasts an automatic correction function to ensure perfection in every bag.

In a competitive market, where presentation and performance are paramount, our Quad Bag Packing Machine is the ultimate choice. It marries elegance and functionality seamlessly, ensuring your products stand out while maintaining the highest standards of precision and reliability.

How Do I Choose A Quad Bag Packing Machine?

You may think choosing a quad bag packing machine is a complex job relating to several factors such as product type and size, production capacity, machine’s flexibility and versatility, package quality and consistency, machine maintenance and durability, etc.

As a matter of fact, you come to consult Suntech, a manufacturer of quad bag packing machine, offering a wide range of the quad bag packing machines.


04. Product detailed: Quad Bag Packing Machine

Quad Bag Packing Machine

 Name: Multi Heads Weigher

 a) 4 heads, 10 heads, 14 heads can be optional.
 b) Weigher buckets have independent control mode.      When compared to the standard weigher speed increased  by 10% and capable to perform a faster and more  accurate calculation.
 c) Counting function can satisfy diversified weighing  requirements.
 d) Sample collection function makes weighing process  more accurate.
 e) New features include low supply warning, controllable  feeding, automatic material filling and failure rejection  functions.
 f) It is suitable for weighing of granule, slice, roll or  irregular shape materials such as candy, seed, jelly, fries,  coffee granule, peanut, puffy food, biscuit, chocolate, nut,  chips, pet food, frozen foods, etc. It is also suitable for  weighing small hardware and plastic component.


 Name: Main Packing Machine
 precision bag former & touch screen, digital screen display  with numerical setting and flexible operation; Imported  PLC control system and color touching screen, easy  operation; PID independent control of temperature, more  suitable for different packaging material.

Quad Bag Packing Machine
Quad Bag Packing Machine


 Name: Z Type Elevator (Optional)

 a) The elevator and electronic metering scale is used  together, control circuit is used to control material's  position,realizing automatic feeding and stopping function.
 b) The elevator can be made of stainless steel or carbon  steel, according to the customer, choice.
 c) The Bucket conveyor (Z-shaped) is designed to handle  both tough and sanitary applications.
 d) They are available in a range of sizes and materials  and well-suited for granular and slice products, for  example: chips, frozen food, pet food, cookies, nuts, small  hardware, recycling, building and metallurgical industries  etc.

 Name: Finished Product Conveyor (Optional)
 Adopting imported miniature motor and featured  with low noise and long tifetime. It can transport  finished goods to platform, reduce waste during  packing, making the machine work more  smoothly.Greatly submitted production efficiency  and reduced labor costs.

Quad Bag Packing Machine
