Doypack Packing Machine

Doypack Single Station 300g Corn Powder Paper Premade Stand Up Bag Packing Machine


1. Compact single station, pneumatic system used for safety running & low maintenance.

2. From down pouch pick up-open-fill-seal to output which is controlled by PLC. 3.7" User's friendly H.M.I. ensures high efficiency performance.

3. Depending on product condition and pouch type, main menu settings can be set on the screen, multiple pouch type can run on the same machine by suction position adjusting.

4. Auto pouch detecting sensor, no pouch no dump ensures material splash down.

5. Automatic breakdown detection and solution is displayed on the screen clearly.

6. Various option functions are available as per request, such as auto zip-lock open device/Hot Stamp Printer/ Hopper Shaker/ Product Settler.

7. PLC Control, Touch Screen, Temperature Control, Automatically Pneumatic Components, Gas Processor, Alarm.

8. Building Material of mini doypack, the frame is made of 304SUS and anodized aluminum profiles.

9. Interlock Safety, CE Application - auto stop when the door is open.

Product Description

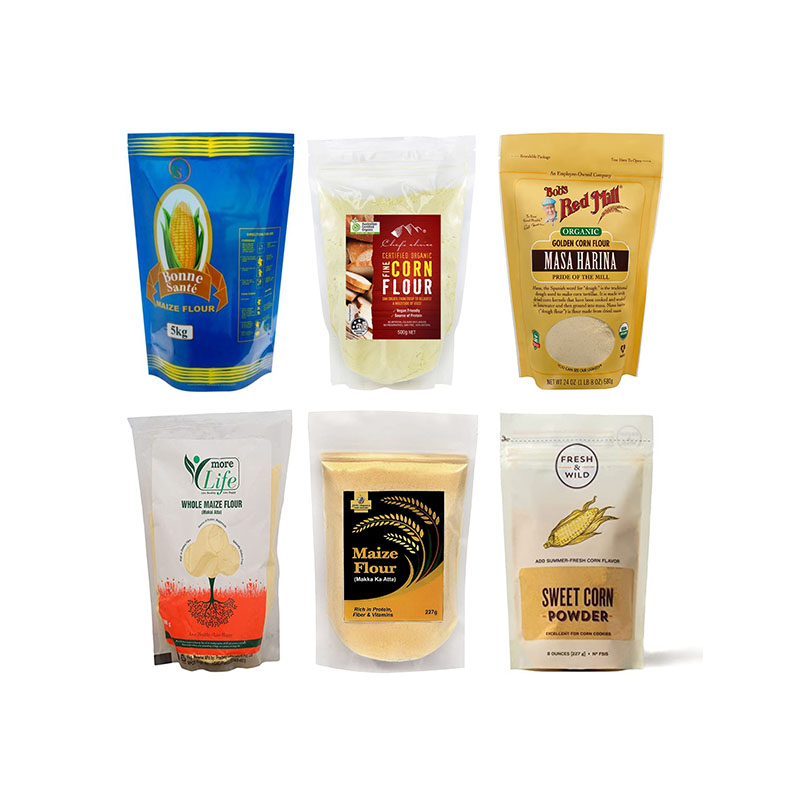

The machine has a wide application: food & medicine industry item, such as flour, maize flour, coffee powder, milk powder, cocoa powder, custard powder, chilli & seasoning powder etc; Also it is applied in chemical coatings industry: putty powder, dry motor powder, detergent powder and so on.





Premade Pouch Type

Stand up, 3 side seal pouch, Zipper pouch, Zip-lock pouch, Top zip pouch, etc.

Premade Pouch Size

Standard Bag: 100-300mm(W) *100-300mm(L)
Ziplock Bag: 130-300mm(W) *130-300mm(L)


Max. 15 BPM

Power Supply

220V/50HZ or 60HZ Single Phase 1KW Or Customized

Air Pressure

7.0 CFM@80 PSI

Operation Panel

7” user's friendly touch screen


Mitsubishi PLC / Omron Temperature Controller Omron Power Switch / Schneider Breaker


Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gas-flush and vacuum function, Take Away Conveyors, Filling devices, Ribbon Stamp Printer


-2.jpgCE Quality Good Automatic Roasted Coffee Bean Bulk Bag Packing Packaging MachineCE Quality Good Automatic Roasted Coffee Bean Bulk Bag Packing Packaging Machine


Our affordable, easy to use packaging machine are suitable for company wanting to automate their packaging processes for the first time or to the larger producer looking for more productivity and efficiency.









CE Quality Good Automatic Roasted Coffee Bean Bulk Bag Packing Packaging Machine


How to Delivery

We use non fumigation pallets plywood cases to pack machines.


Our Service

Pre-Sale Service:

 We will according your product feature, weight of each bag, and shape of bag make a quotation for you. Then more details we need communication such as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.


 After-Sale Service:

Warranty: 2 Years except wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc), Most of components are free-replacement (PLC, Servo controller, Servo motor, Touch screen, Cylinder). Machine delivery will with a tool box, there have some parts are free.

Operation training:

1: Machine is very easy operate, delivery with manual, offer lots of photos and videos when machine in assembling or disassembling.

2: Welcome to our factory learning.

3: Engineers available to service machinery overseas.


About Suntech

We has gained rich experience in the packing machinery field and has many mature technologies. So far, dozens of packaging machine series have been successfully developed to achieve the optimal matching of automatic weighing machines and packaging machines. It is widely used in Food, Beverage, Pharmaceutical ,Chemical, Hardware accessories and other industries. It is the preferred equipment to achieve production automation and improve production efficiency. At present, the products are exported to Europe, America, Middle East, Southeast Asia, Africa and other parts of the world, and are deeply trusted and praised by users.


We not only provide customers with high quality and reliable products, but also design and manufacture packaging equipment according to customers' actual requirements, provide packaging overall solutions, undertake various standard packaging machines OEM business, and provide professional technical service support for customers. To create greater value for customers.


"Strictly Abide by the Integrity, the Pursuit of Excellence", all the Suntech people must take it as their conviction and serve the customers wholeheartedly, warmly welcome customers at home and abroad to visit and guide, we hope to create brilliant success together with you!
