Doypack Packing Machine

Granule rotary multi station Packing Machine

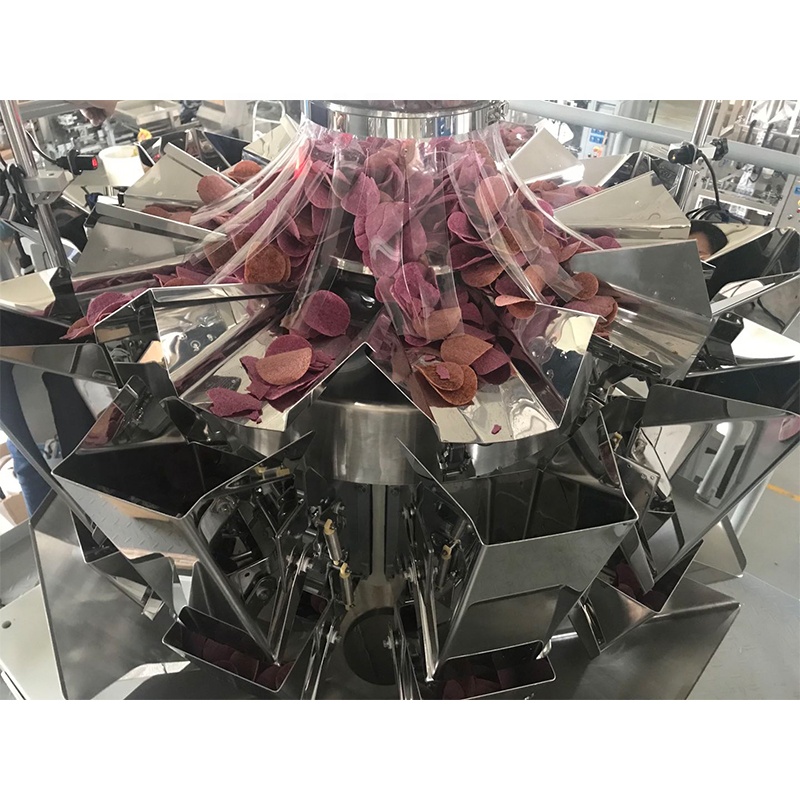

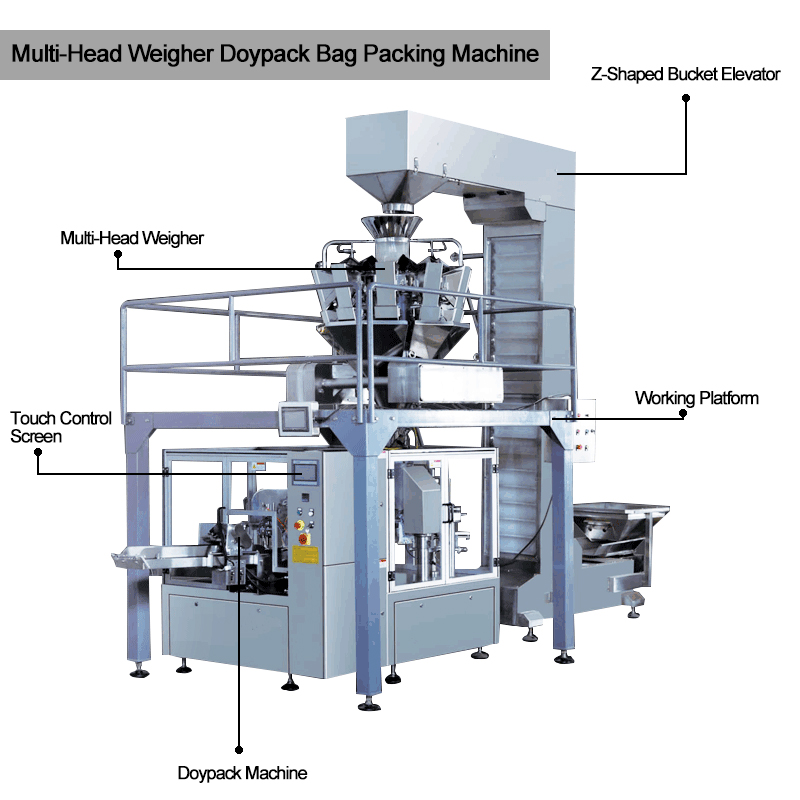

SUNTECH granule rotary packaging machine with multi head weigher, it is suitable to use in packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, seeds, chips, nuts, nutlet, preserved fruit, jelly, biscuits, Potato Crisps, pet food, grain, cereal, dilatant foodstuff, hardware and plastic can be weighed by the ration.

01. Product application:

SUNTECH fully automatic rotary packaging machine with multi head weigher, it is suitable to use in packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, seeds, chips, nuts, nutlet, preserved fruit, jelly, biscuits, Potato Crisps, pet food, grain, cereal, dilatant foodstuff, hardware and plastic can be weighed by the ration.


According to customer needs,the machine can use stand up bag, gusset bag, zipper bag, pouch,three sides seal, four side seal etc. bag types.

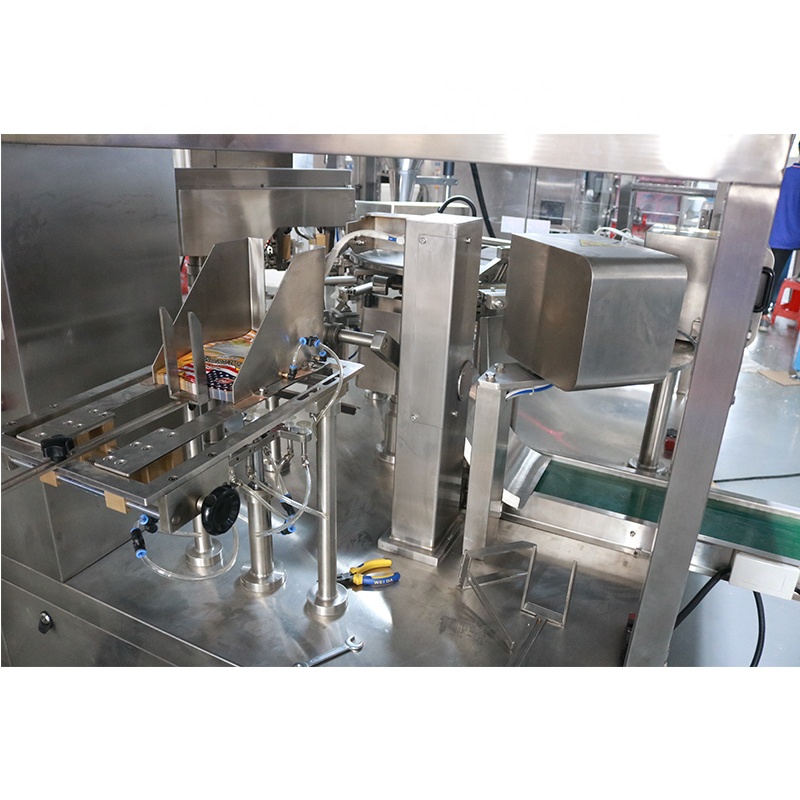

Rotary Pouch Packing Machine

02. Product feature:

1.Easy to operate,adopt advanced PLC from Germany Siemens,  mate with touch screen and electric control system, the man-machine interface is friendly.

2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

4.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

5.Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

6.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.

7.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and  has a  high quality of the sealing part, this improved the product specification



03. Machine Specification:

Model

SUN-S8-200

Working position

Eight-working position

Pouch material

Laminated film\PE\PP etc.

Pouch pattern

Flat pouch, 3 or 4 sealing bag, stand up bag, gusset bag etc.

Pouch size

W:100-200mm L:100-300mm

Speed

Up to 50 pouches/min(The speed depends on the product status and filling weight)

Weight

1250KGS

Voltage

380V 3phase 50HZ or customer customized

Total power

3.5KW

Compress air

0.4m3/min(supply by user)

Size

2200*1850*1500mm



Packaging & Shipping

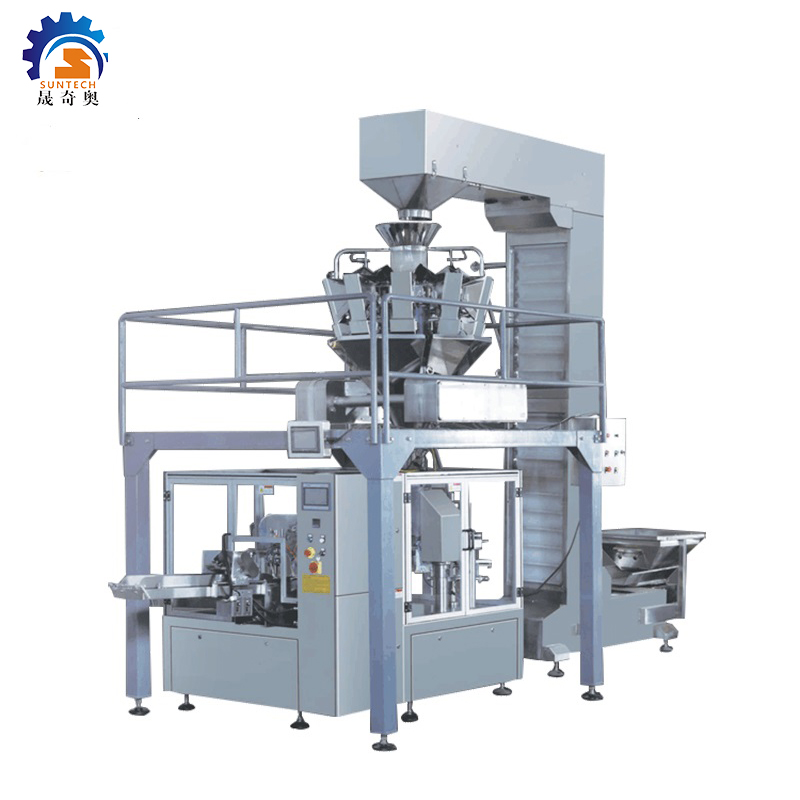

Rotary Pouch Packing Machine

  • Packaging: machinery standard packaging or customized.
  • Shipping: By Air, by Sea or by Express (DHL etc) Shipment cost will depend on the destination, shipment way and the weight of the goods.

>>Trade terms:

  • Delivery Time: 20-30 Days.
  • Please tell us quote EXW,FOB,or CIF price? Which port is very impotant.
  • Payment: T/T, 30% deposits, 70% balance before deliverying. L/C acceptable.



Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film/ pouch material
