Machine Description
1. Multi Function: Feeding,Dosing,Filling,Bag forming,Date print and Sealing all in one.
2. Bag dimension is very good: The machine adopts with servo film driving system, PLC program control, Serson tracking, can make sure each bag dimension is very nice.
3. Sealing very well: Vertical and Horizontal sealing own itself temperature-controller and adjustable. That means bag sealing very well and flexible to film.
4. Easy operation: Color touch screen support multiple languages.
5. Reliable: Higher configuration Servo-Motor, PLC, and Touch Screen is Schneider.
![Vertical Packaging Machine](https://s.alicdn.com/@sc04/kf/H90f954088f094ffcba419b185bbc0d21h/228121812/H90f954088f094ffcba419b185bbc0d21h.png)
What Can Be Pack
It is suitable to use in packing the high accuracy and easy fragile material. Such as: puffy food,chips, jelly, candy, pistachio nuts, nuts, apple slices, frozen dumpling, coffee beans,pasta,cotton candy, french fries,rice, pet food, small hardwares etc.
![Vertical Packaging Machine](https://s.alicdn.com/@sc04/kf/H11c13d0abbad4b0daec79f893c652fd0R/228121812/H11c13d0abbad4b0daec79f893c652fd0R.png)
![Vertical Packaging Machine](https://s.alicdn.com/@sc04/kf/Ha3ee6ece639d4377b2db1388c693797aX/228121812/Ha3ee6ece639d4377b2db1388c693797aX.png)
Machine Details

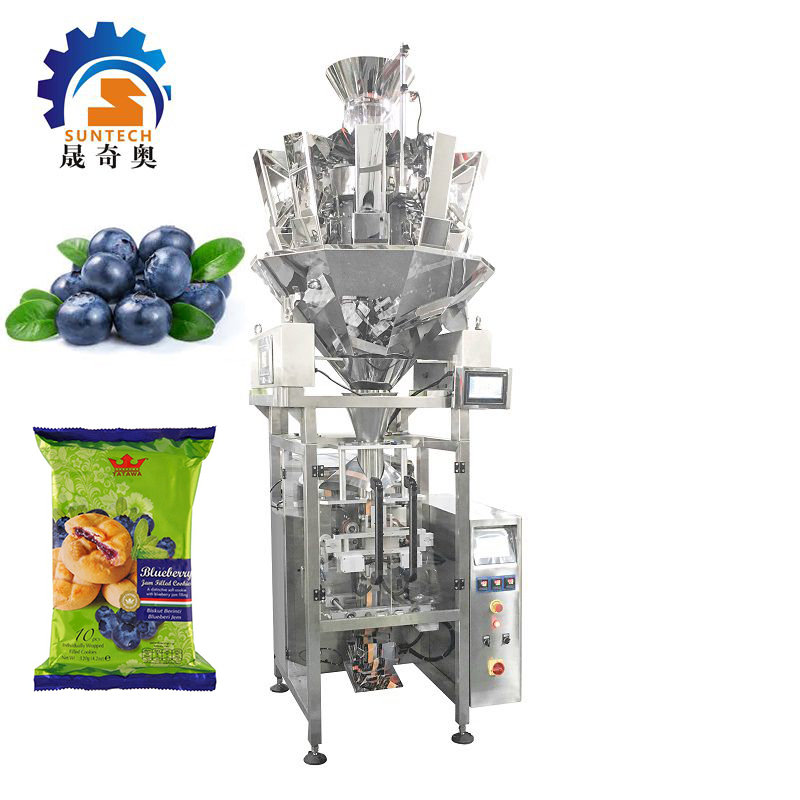

Packaging Machine are used in almost every industry today,food or non-food, They are efficient packaging solutions.

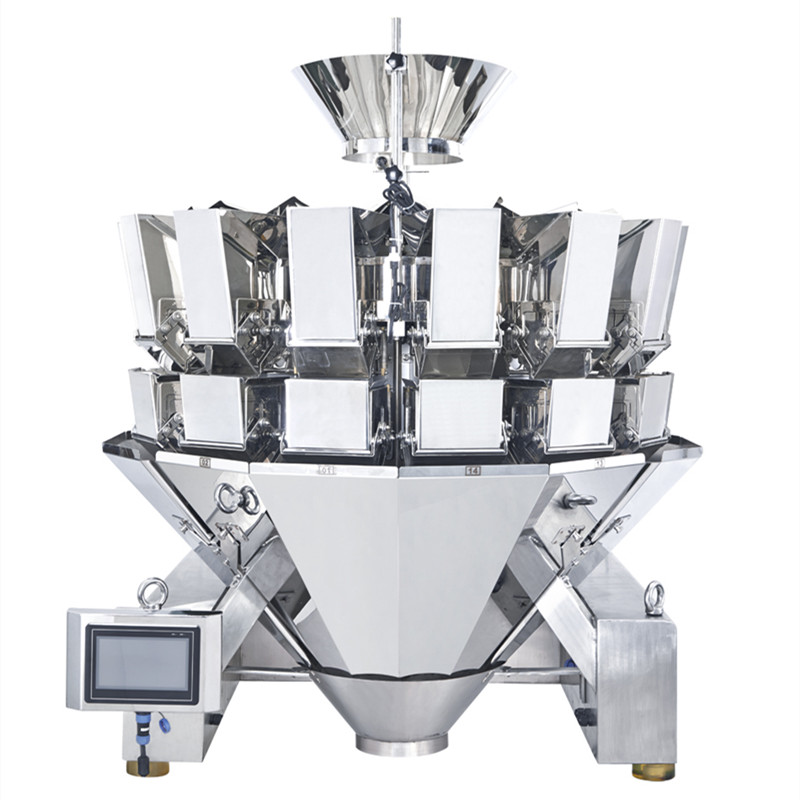

Simplified,Packaging Machine start with a large roll of film, form it into a bag shape,and products will be take with Z Type elevator to mulith heads weigher for dosing, then fill the bag with product, and seal it, all in a vertical fashion, at speeds 5-70 bags per minute.
![Vertical Packaging Machine](https://s.alicdn.com/@sc04/kf/H57cf1aae8e59431c840e25f7ea612fdbL/228121812/H57cf1aae8e59431c840e25f7ea612fdbL.png)
Model
|
SUN-420
|
SUN-520
|
SUN-720
|
Measuring Range
|
10-1000g
|
10-2000g
|
100-5000g
|
Packaging Speed
|
5-60bags/min
|
10-50bags/min
|
10-40bags/min
|
Bag Width
|
60-200mm
|
80-250mm
|
100-350mm
|
Bag Length
|
80-300mm
|
80-350mm
|
100-450mm
|
Max Film Roll Width
|
420mm
|
520mm
|
720mm
|
Machine Weight
|
450KG
|
550KG
|
700KG
|
![Vertical Packaging Machine](https://s.alicdn.com/@sc04/kf/H56f58637f29d4c3ab3b1f11515115bf0y/228121812/H56f58637f29d4c3ab3b1f11515115bf0y.png)
